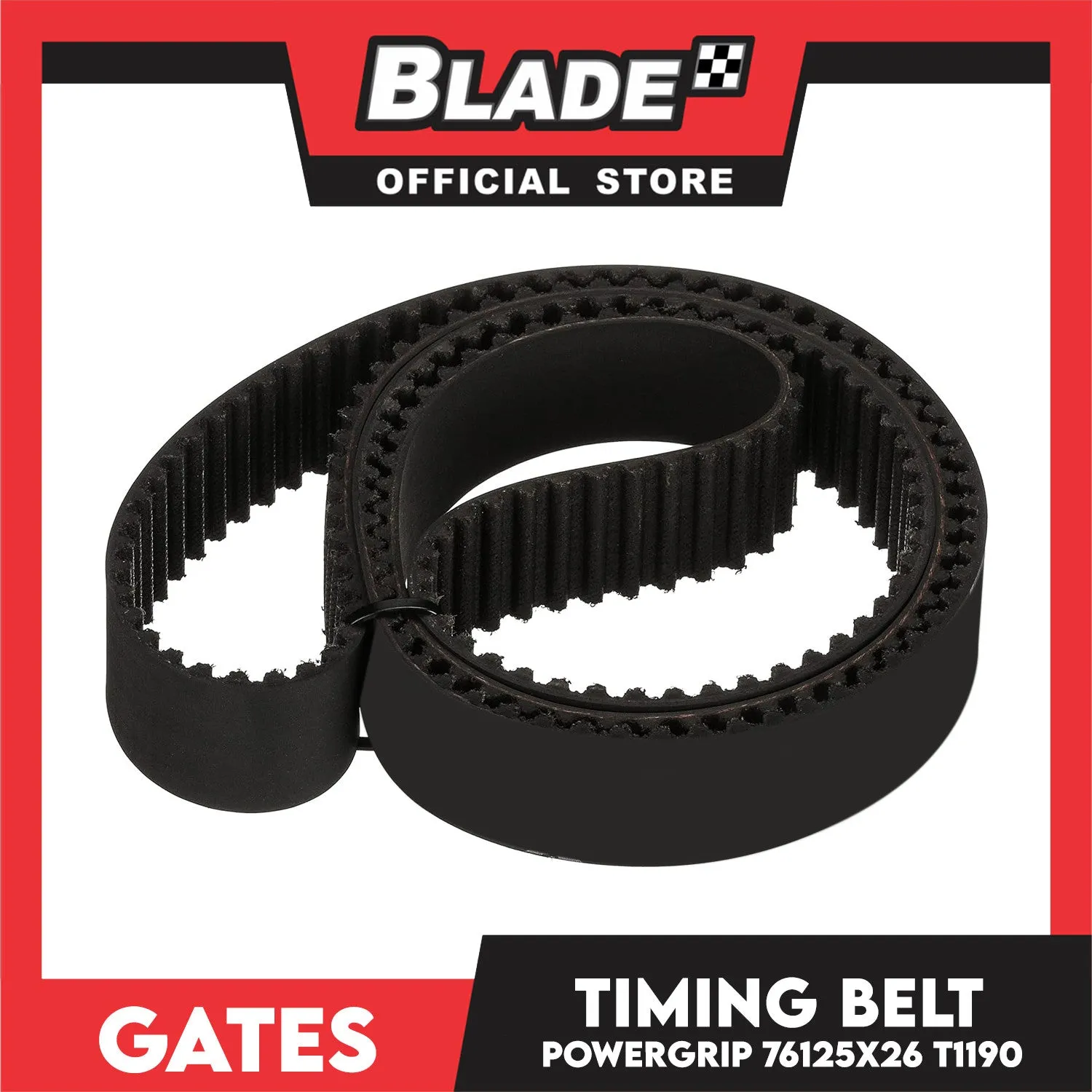

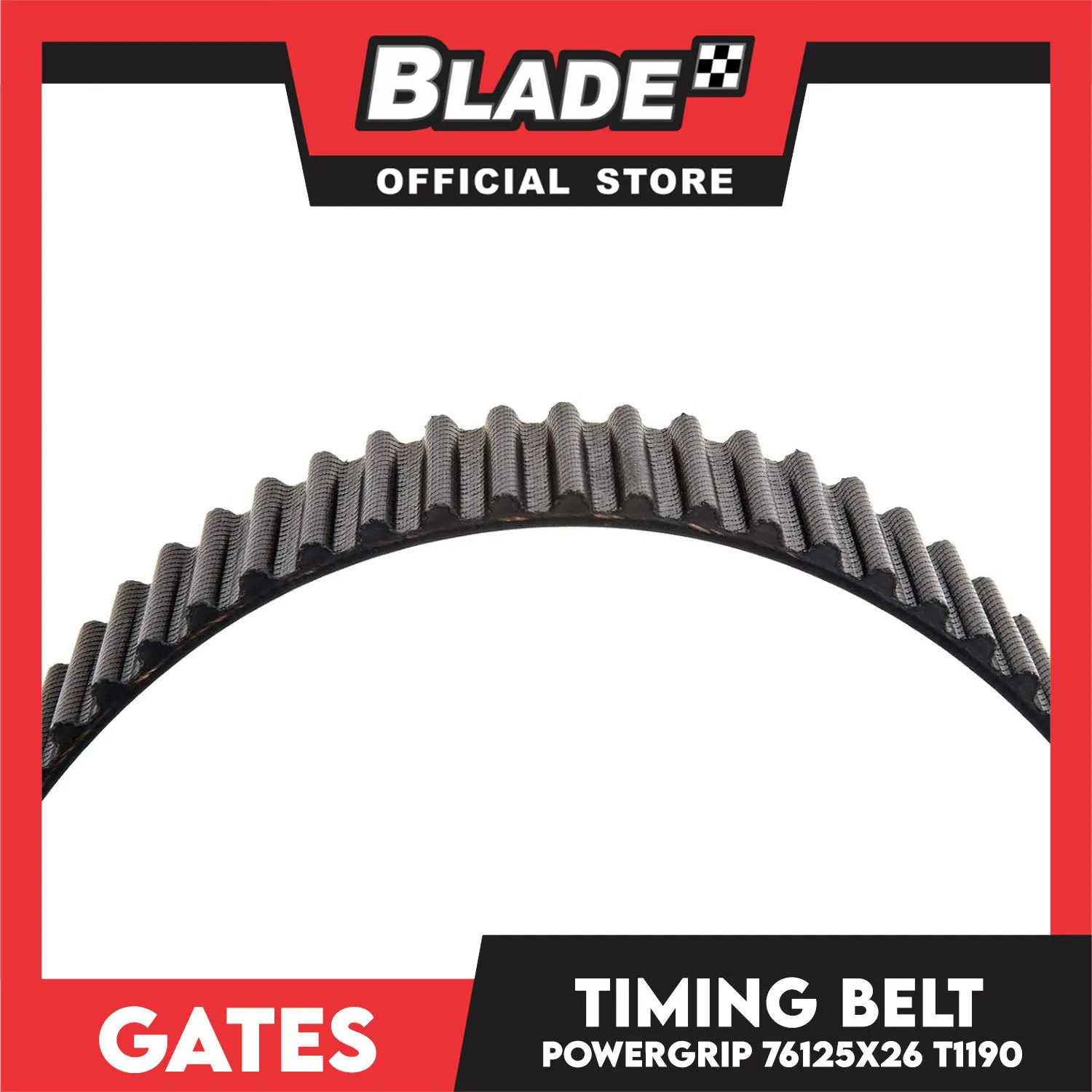

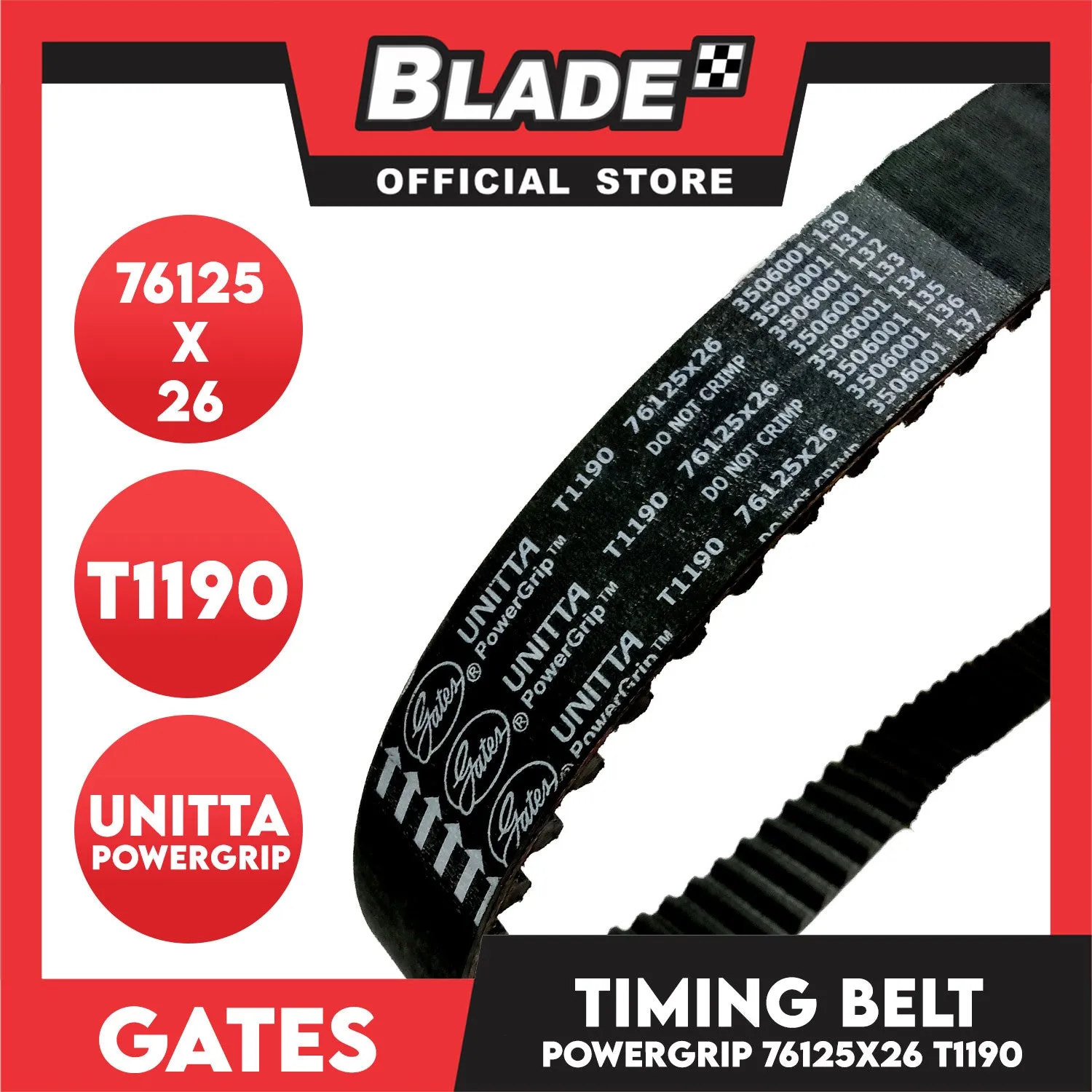

• Part No: T1190
• Material: Polychloropren (neoprene)
• Colour: Black
• Number of teeth: 125
• Width (mm): 26
• Length (mm): 1191
• Qty: 1pc



• PTFE-infused jackets to reduce frictional losses and tooth shear.
• High grade HNBR rubber for superior heat and contamination resistance.
• Premium tensile members providing maximum strength.
• Aramid reinforced nylon jackets and backsides increase durability and lifetime.
• Genuine warranty equal to OE replacement interval.



• Suitable with:
• HONDA
• CIVIC
•  Petrol 1.6L/88KW 1.6 (EK1, EJ6) D16Y4 EJ,EK,SO Front-Wheel Drive Sedan (10/95-09/00)



• CR-V
•  Petrol 2L/108KW 2.0 16V 4WD (RD1, RD3) B20Z1 RD All-wheel Drive SUV (01/99-02/02)
•  Petrol 2L/98KW 2.0 (RD1) B20Z1 RD All-wheel Drive SUV (04/99-02/02)
•  Petrol 2L/109KW 2.0 4WD B20Z2 RD All-wheel Drive SUV (09/98-12/01)
•  Petrol 2L/94KW 2.0 16V 4WD (RD1, RD3) B20B RD All-wheel Drive SUV (10/95-12/01)



• STEPWGN
•  Petrol 2L/99KW 2.0 (RF1) B20B E-RF_,GF-RF_ Front-Wheel Drive MPV (05/96-09/00)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
